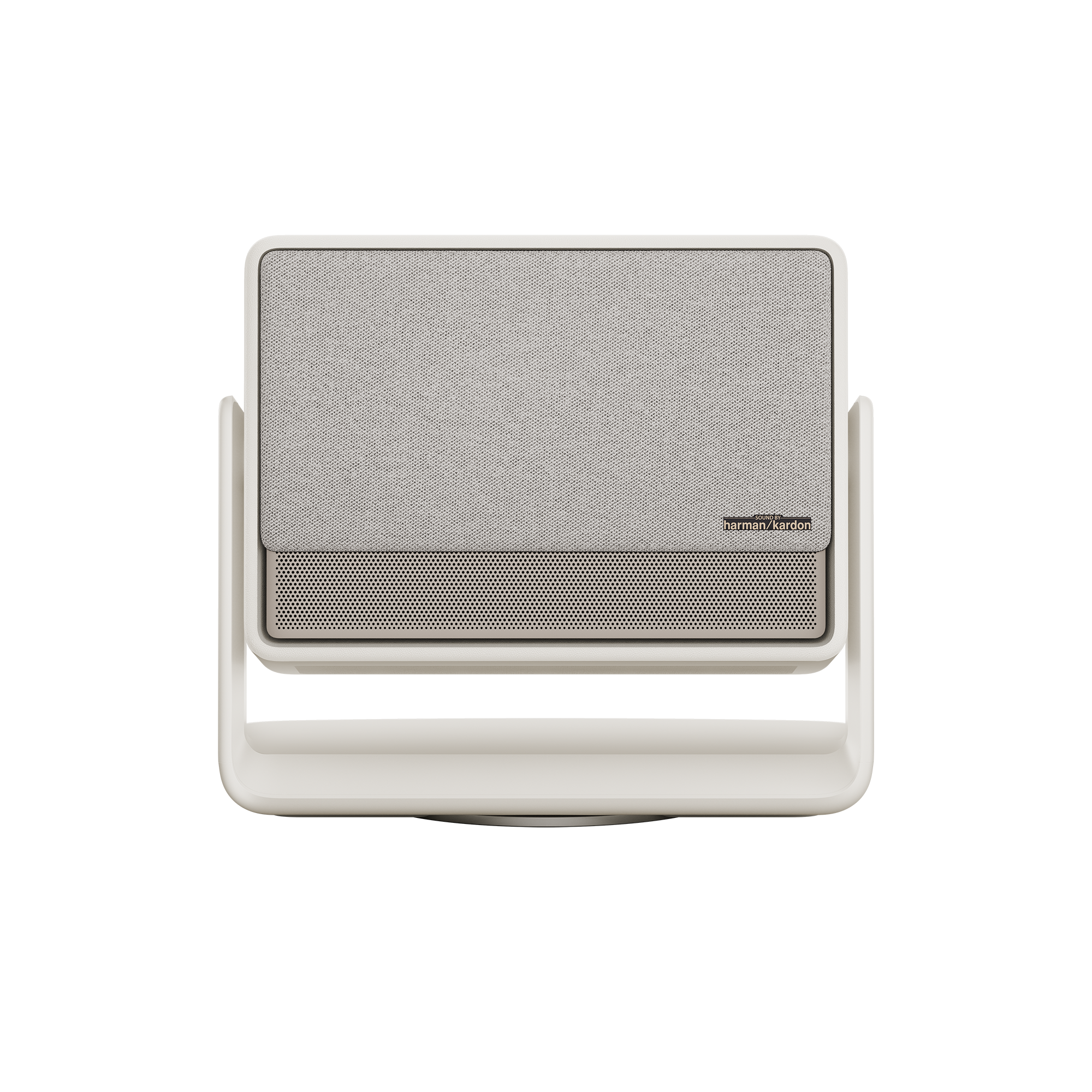

HORIZON S Max

$4,299.00

  • IMAX Enhanced & Dolby Vision Certified: With IMAX Enhanced, users can enjoy a true IMAX theater experience on a stunning big screen. Dolby Vision provides incredibly vivid effects, making your viewing experience even more immersive.
  • 3100 ISO Lumens: Outstandingly high brightness, unaffected by ambient light. Enjoy brilliant 4K visuals with exceptional light and shadow detail.
  • Equipped with a flexible built-in stand: HORIZON S Max eliminates the need for additional brackets or mounts. Easily adjust the projection angle to your liking, even when projecting onto the ceiling.
  • ISA 5.0: Our advanced spatial perception algorithms now boast a substantial increase in image data training, delivering smarter features like wall color adaption and ultra-wide screen mode.
  • More Comfortable Viewing Experience: SGS Low Blue Light Certification, Low Speckle A+ Certification, Low Color Breakup Ratio A+ Certification.
  • Electric Sliding Cover: Soft texture with woolen fabric. Create the ideal ambiance, especially when using the device at home.

Shipping Tip Shipping begins within 7-11 days


Secure
Payments
Visa Mastercard American Express Discover Apple Pay Google Pay PayPal Shop Pay Diners Club JCB

Fast, Free Shipping
30-Day Money-Back Guarantee
12-month Hassle-Free Warranty
Lifetime Customer Support

Quick Look
IMAX Enhanced & Dolby Vision Certified

With IMAX Enhanced, users can enjoy a true IMAX theater experience on a stunning big screen.1 Dolby Vision provides incredibly vivid effects, making your viewing experience even more immersive.2

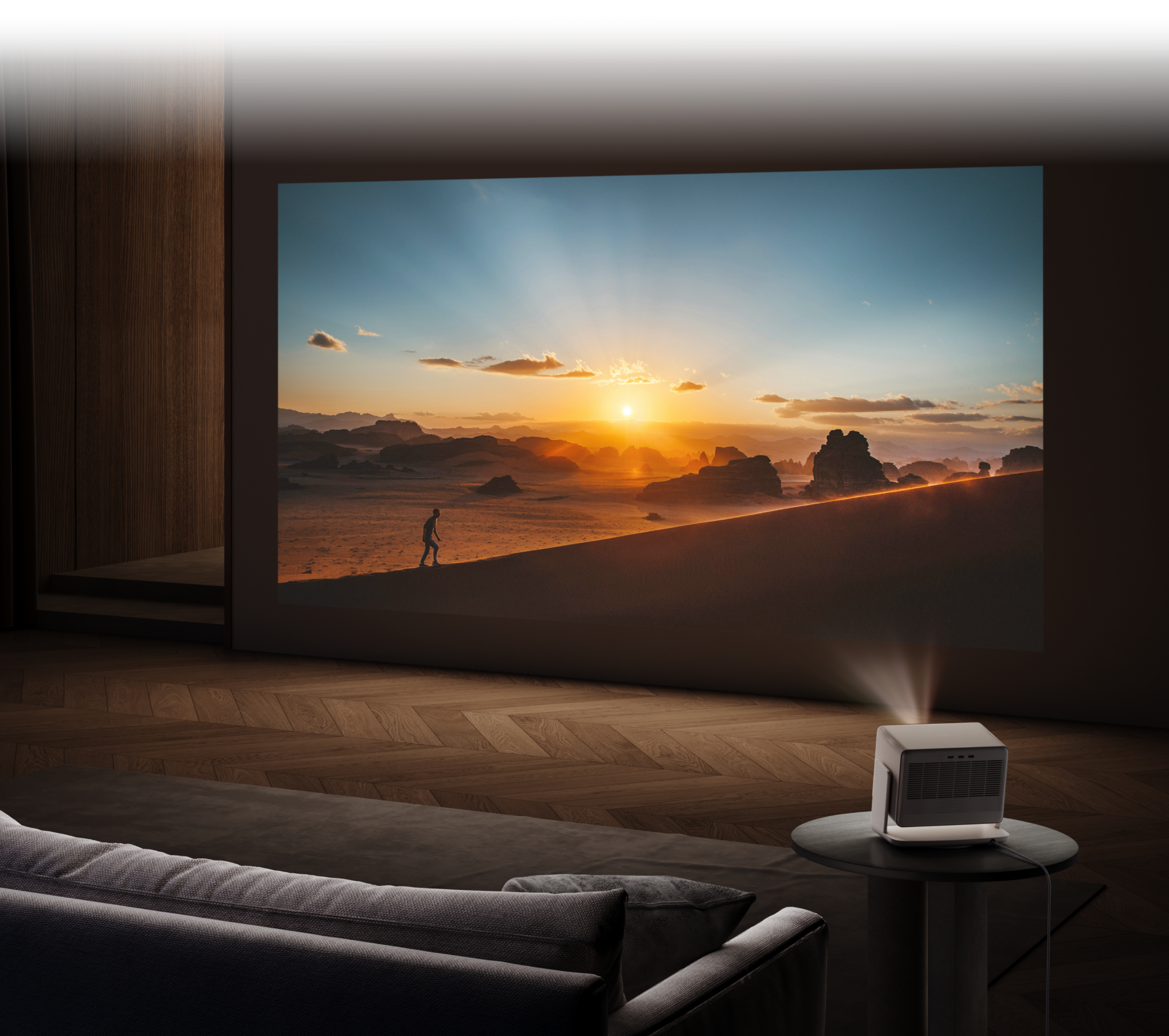

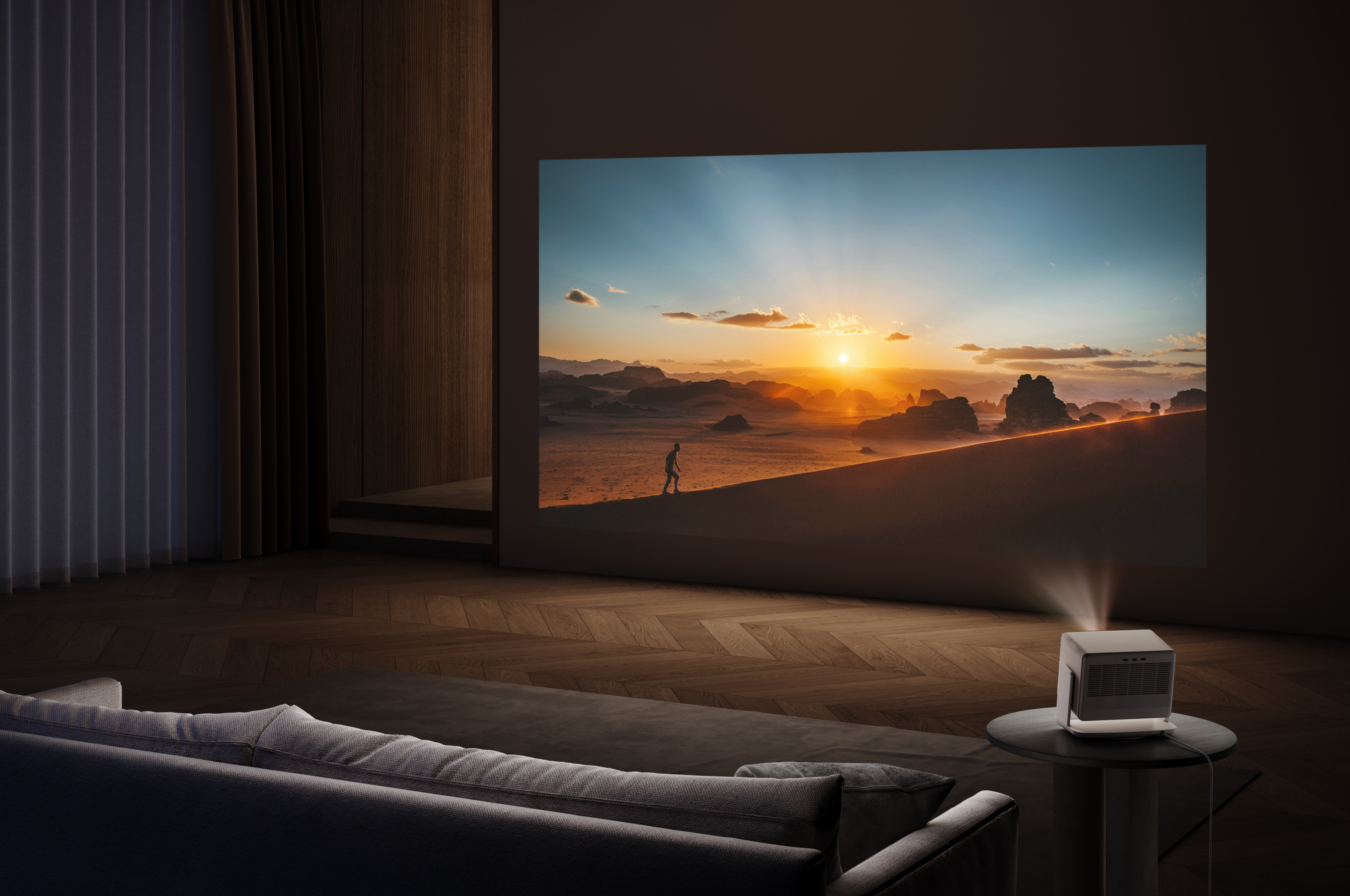

3100 ISO Lumens3 Stunning Clarity on A Big Screen

Outstandingly high brightness, unaffected by ambient light. Enjoy brilliant 4K visuals with exceptional light and shadow detail.

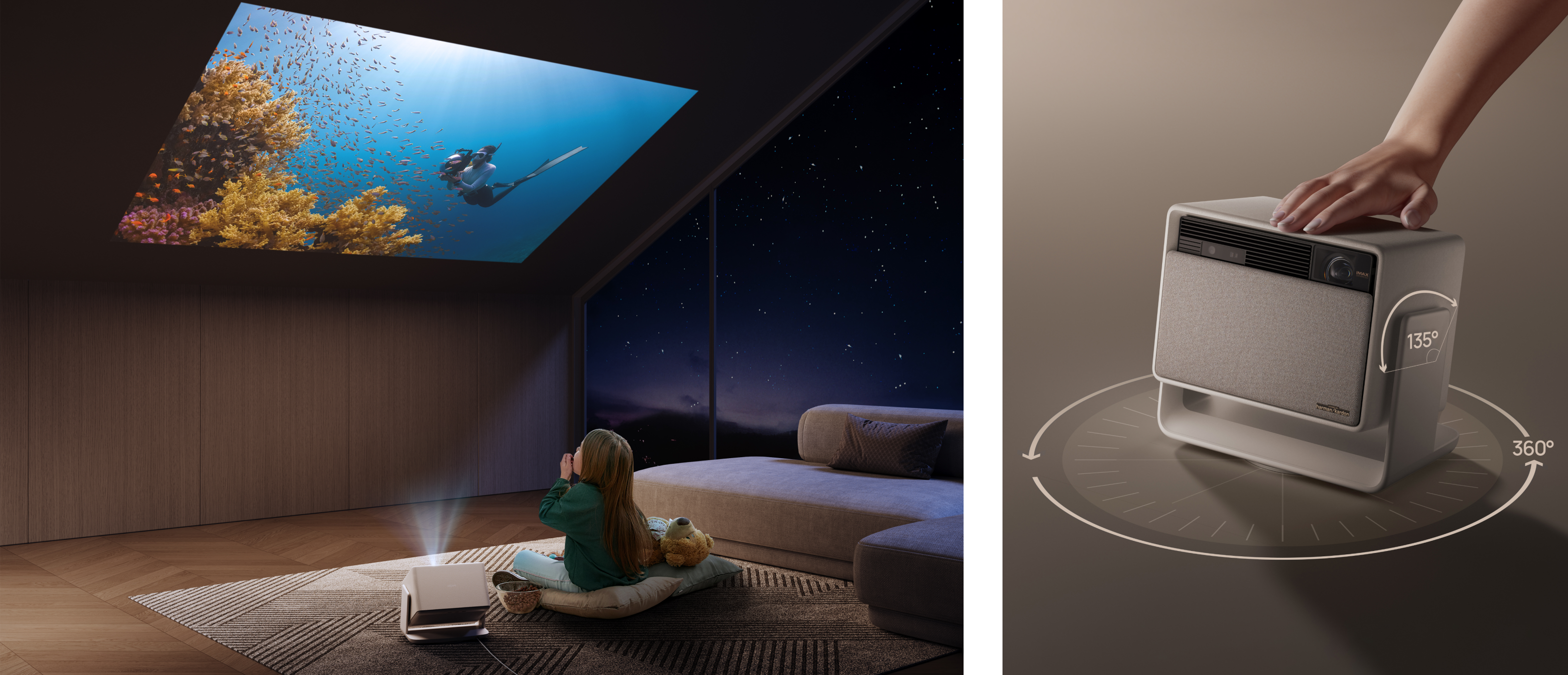

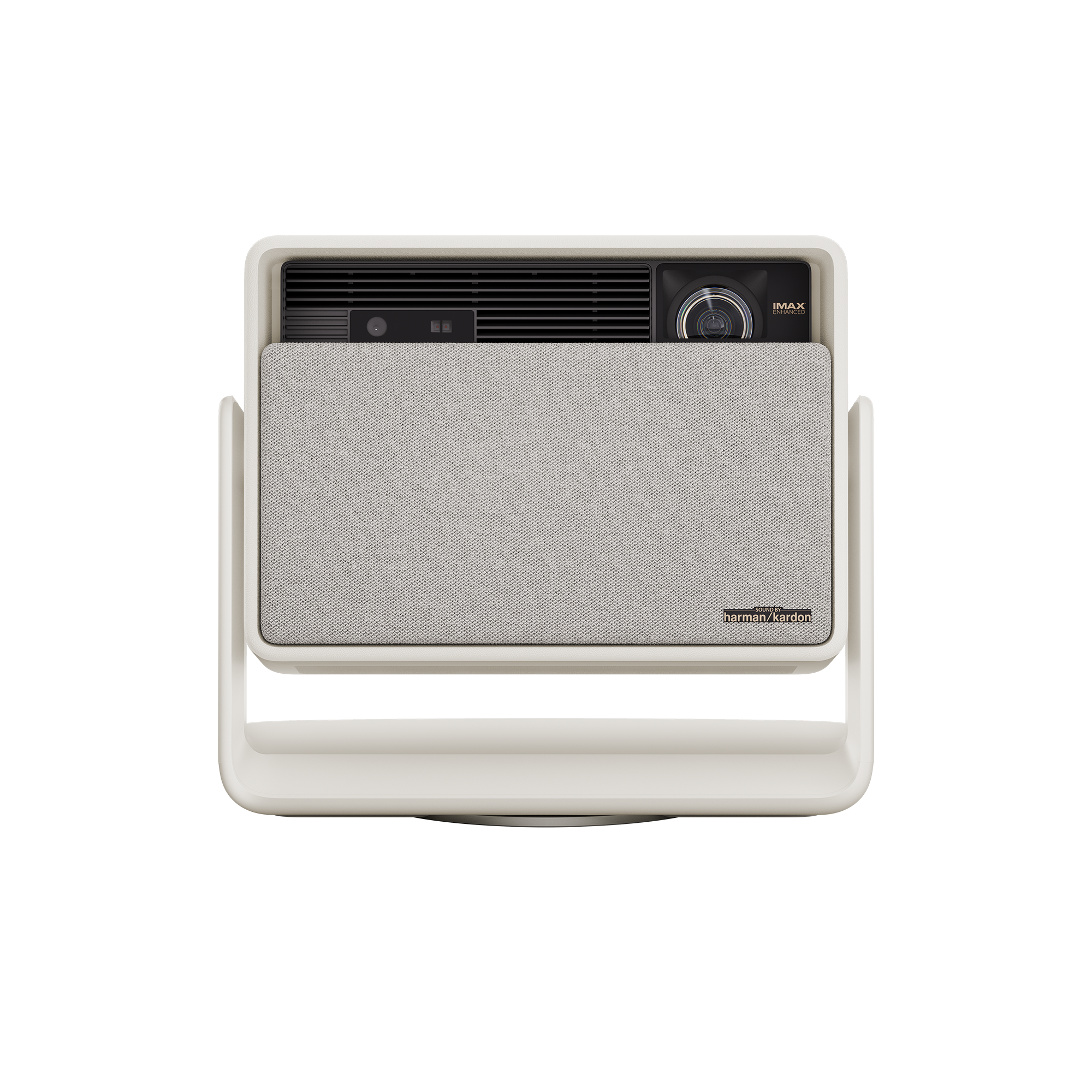

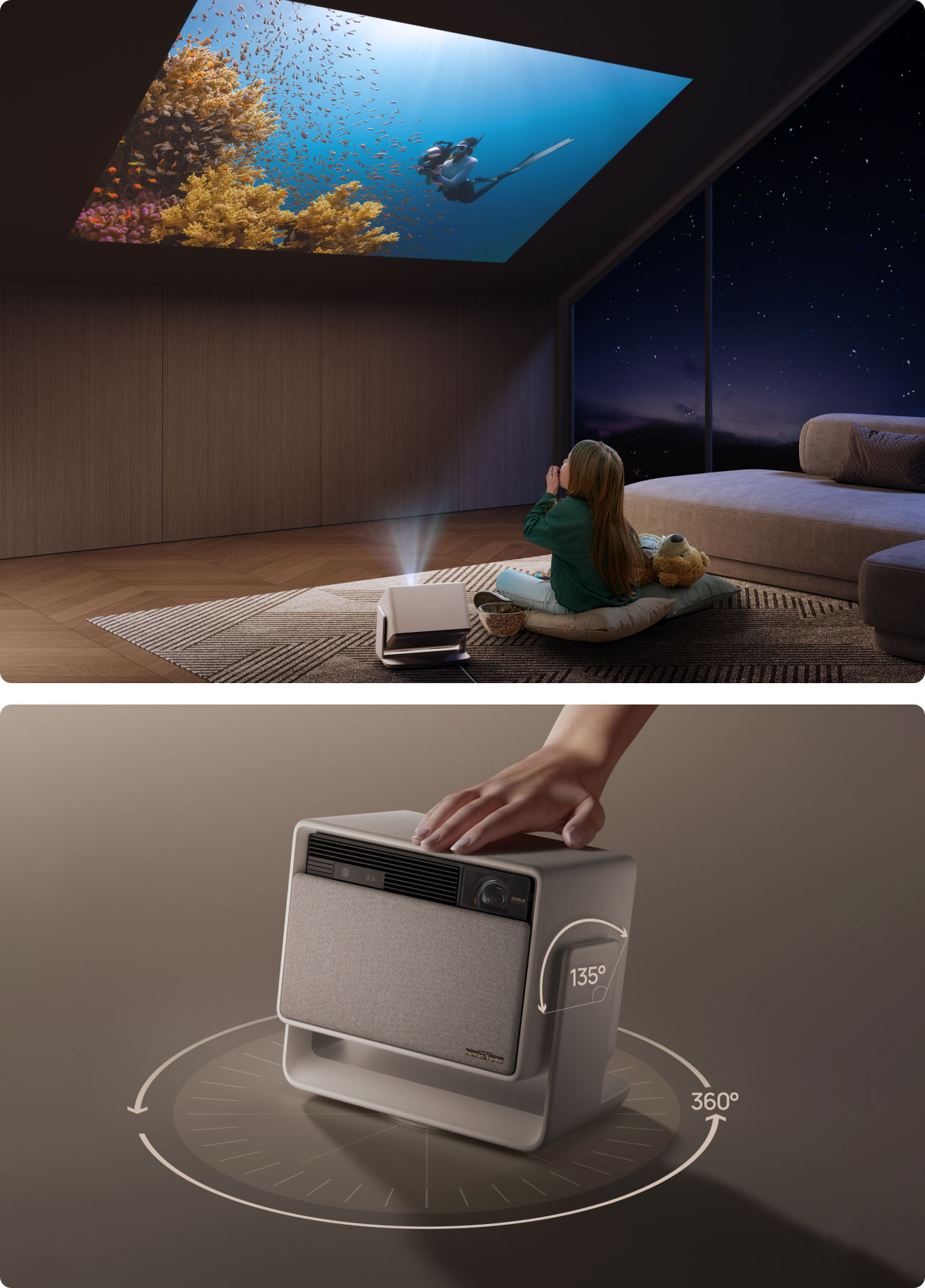

Built-in Flexible Stand

Equipped with a flexible built-in stand, HORIZON S Max eliminates the need for additional brackets or mounts. Easily adjust the projection angle to your liking, even when projecting onto the ceiling.

Intelligent Screen Adaption (ISA) 5.0

Our advanced spatial perception algorithms now boast a substantial increase in image data training, delivering smarter features like wall color adaption and placing us nearly two years ahead of the industry.

In the Box
Specs
Display
Product Classification
Home Projector
Light Source
Dual Light 2.0
Expected Lamp Life
20000 Hours16
Display Technique
DLP
Display Chip
0.47” DMD
3D
Yes, Frame Packing & Side by Side
Supported Formats
HDR10, HLG, Dolby Vision, IMAX Enhanced
Latency
Game Mode ≤ 20ms (AK off)
MEMC
Yes
Brightness
3100 ISO Lumens
Standard Resolution
3840 x 2160 pixels
Color Gamut
BT.2020 110%
Contrast Ratio
Dynamic 1000000:1
Lens
High Light Transmission Coated Lens
Eye Protection
Yes
Setup
Auto Keystone Correction
ISA 5.0 Uninterrupted Auto Keystone
Focus
ISA 5.0 Auto Focus
Intelligent Screen Alignment
Yes
Intelligent Obstacle Avoidance
Yes
Optical Zoom
/
Digital Zoom
Yes
Throw Ratio
1.2:1
Aspect Ratio
16:9/4:3
Projection Method
Front, Rear, Front Ceiling, Rear Ceiling
Image Size
40'' - 200''17
System
CPU
Cortex-A55
GPU
Mali-G52
RAM
2GB
Storage
64GB18
System
Android TV™11.0
Fast Boot
Yes (STR)
Mirroring Display
DLNA/GoogleCast
Audio
Speaker
2 x 12W Harman/Kardon
DTS-Virtual:X
Yes
DTS-HD
Yes
Dolby Audio
Yes
Dolby Digital (DD)
Yes
Dolby Digital Plus (DD+)
Yes
Connectivity
WiFi
WiFi 5 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac
Bluetooth
Bluetooth 5.1
Input Ports
DC x 1
HDMI (eARC Supported) x 1
USB x 2
Output Ports
/
Electrical
Noise Level
<28dB@1m19
Power Dissipation
<300W
Power
AC100-240V, 50/60Hz
Measurements
Product Size (H x W x D)
234 x 273 x 174 mm20
Product Weight
4.81 kg21
Package Size (H x W x D)
245 x 393 x 310 mm20
Package Weight
7.4 kg21

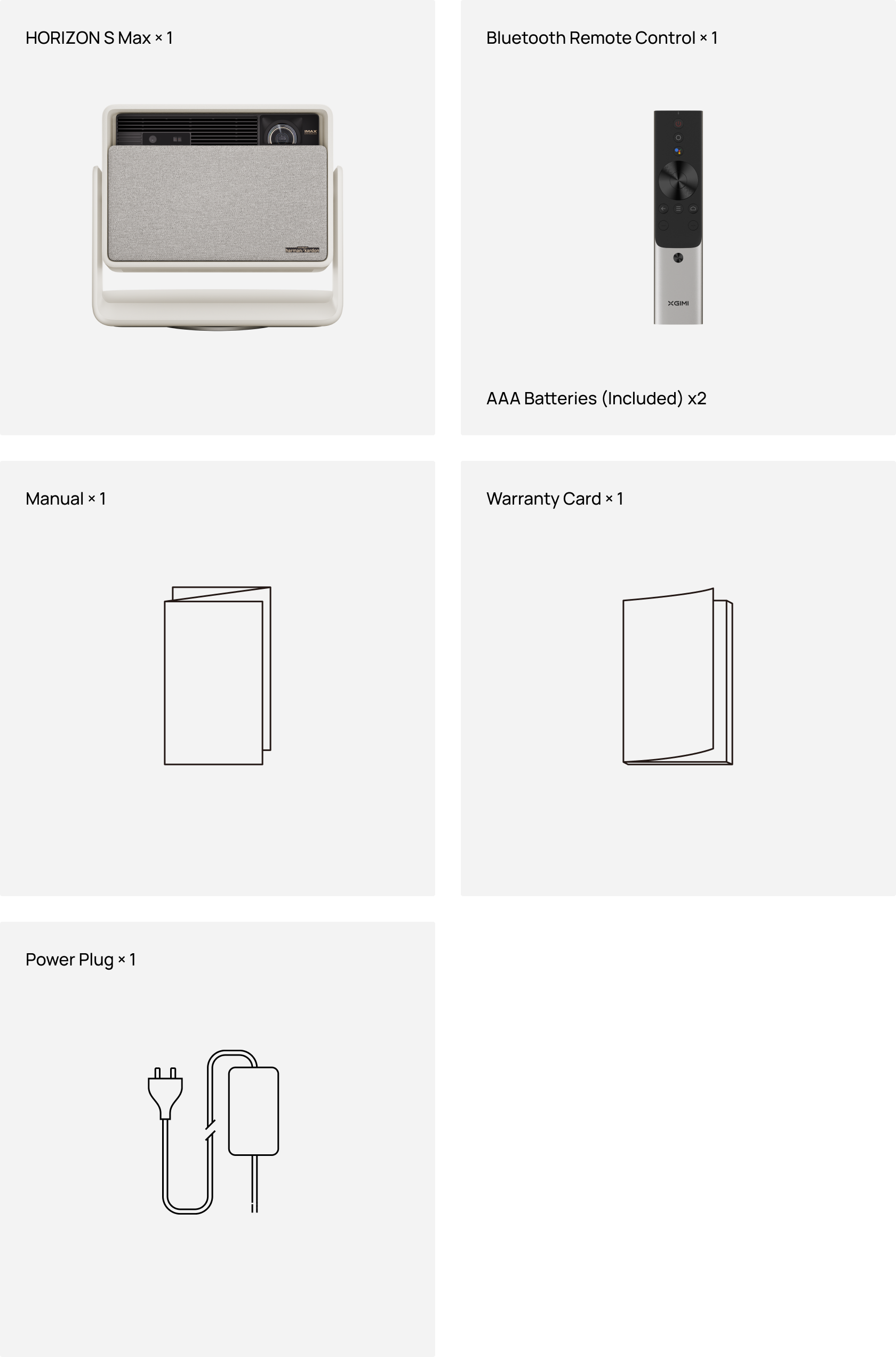

What's in the Box
Power Plug
x 1
Manual
x 1
Warranty Card
x 1
Bluetooth Remote Control
New Bluetooth Remote Control x 1
AAA Batteries x 2

Product Notes:
1. This product is IMAX Enhanced certified.
2. Dolby Vision Certification Number: #724097.
3. Brightness (light output) will vary depending on usage conditions. White light output is measured according to ISO 21118. The nominal value represents the average value of mass-produced units and is tested under ideal laboratory conditions in Performance Mode/High Power Mode. In Performance Mode, the highest brightness is achieved, which may result in some color differences compared to the default viewing mode. Additionally, the fan speed may increase, potentially causing noise. This is normal. For regular viewing, it is recommended to use other brightness modes.
4. Based on the data from XGIMI Laboratory tests, this product's color gamut area ratio is 110% under the BT.2020 standard.
5. SGS Professional Color Accuracy Certification Number: PT-23-000-201410. The typical value of ΔE<1 for color accuracy in the factory production of XGIMI HORIZON S Max is obtained from the XGIMI Optical Laboratory. The calibration parameters will take effect when the high color accuracy mode is correctly activated in the system. Color accuracy may vary slightly depending on factors such as projection usage time and lab testing equipment. Please refer to your actual experience for an accurate assessment.
6. Refers to dynamic contrast ratio.
7. Low Speckle A+ Certification Number: PT-23-000-401900; Low Color Breakup Ratio A+ Certification Number: PT-23-000-401940.
8. To ensure accurate calibration, the side throw angle should not exceed 40° (degrees). The display quality may vary based on product usage habits and environmental conditions. When using Uninterrupted Auto Keystone Correction, you need to disable the "Intelligent Screen Alignment" and "Intelligent Obstacle Avoidance" functions in the system settings; due to the complexity of the environment, Uninterrupted Auto Keystone Correction may fail, and manual correction may be required.
9. Due to environmental complexities, Intelligent Obstacle Avoidance does not guarantee the avoidance of all obstacles.
10. For the projection image to automatically fill the entire screen, it must cover the entire border of the screen. To ensure a comfortable aspect ratio, non-16:9 screens may not be fully covered. It is recommended to use a screen with a black border around the edges to improve recognition accuracy.
11. The Wall Color Adaption feature needs to be enabled in the system settings to take effect. Once activated, it can calibrate the picture based on wall colors with a color temperature ranging from 3000K to 15000K. However, the calibration effect may vary depending on the wall color. For optimal results, we recommend using it in dimly lit environments.
12. The Eye Protection function can be enabled or disabled in the system settings.
13. The Ultra-wide Screen Mode feature needs to be enabled in the movie settings. It is applicable to local video sources with a 21:9 format and can only be supported during side projection.
14. The data related to speakers comes from the XGIMI Acoustic Laboratory.
15. Android TV is a trademark of Google LLC.
16. The light source's theoretical lifespan is 20,000 hours. The actual lifespan may vary due to differences in environmental conditions, product usage, and the mode selected.
17. For the best viewing experience, we recommend using a projection size of 60-150 inches. Exceeding this range may affect the quality of your projected content. The display quality may vary based on product usage habits and environmental conditions.
18. The actual storage capacity is subject to change based on various factors, such as system usage, software version, and settings used.
19. Measured under an ambient temperature of 77°F with a 1-meter distance from the machine. Results may vary based on different testing environments, conditions, and the product being evaluated. This data comes from XGIMI laboratories.
20. The actual size may vary based on configuration, manufacturing, and testing method.
21. The actual weight may vary based on configuration, manufacturing process, and testing method.

* Actual product features and specifications (including appearance, color, and size) and actual display aspects (including backgrounds, interface, and icons) may vary by country. Please consult the point of sale for further information.
* All performance data in the preceding pages are theoretical values obtained by XGIMI internal laboratories through tests conducted under particular conditions. Refer to the aforementioned product details for more information on the specific testing conditions. Actual performance may vary based on individual product configurations, software versions, application conditions, and environmental factors. All data is subject to actual usage.
* XGIMI is committed to providing accurate product information. However, due to subsequent changes involving product batches, production, and supply factors, it may be necessary for XGIMI to make changes and adjustments to text and images. Rest assured, these changes are made to match the performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
* Operating temperature: 32°F to 104°F
* All parameters listed on this page are measured in an XGIMI internal test environment for mass production. User experiences may vary in different settings, usage conditions, software versions, etc. Please check the official XGIMI website for detailed test standards and data.
* The product includes a printed manual. However, the electronic manual will be updated on the XGIMI website. If there is any discrepancy or conflict between the printed and the electronic manual, please refer to the latest electronic manual on the official website.
* We advocate for environmental sustainability and paper conservation. For instructions in various languages, please scan the QR code of the printed manual or download the electronic version. If you have any questions during use, please contact us via service-au@xgimi.com.
